OWAtecta S 39 (for UK only)

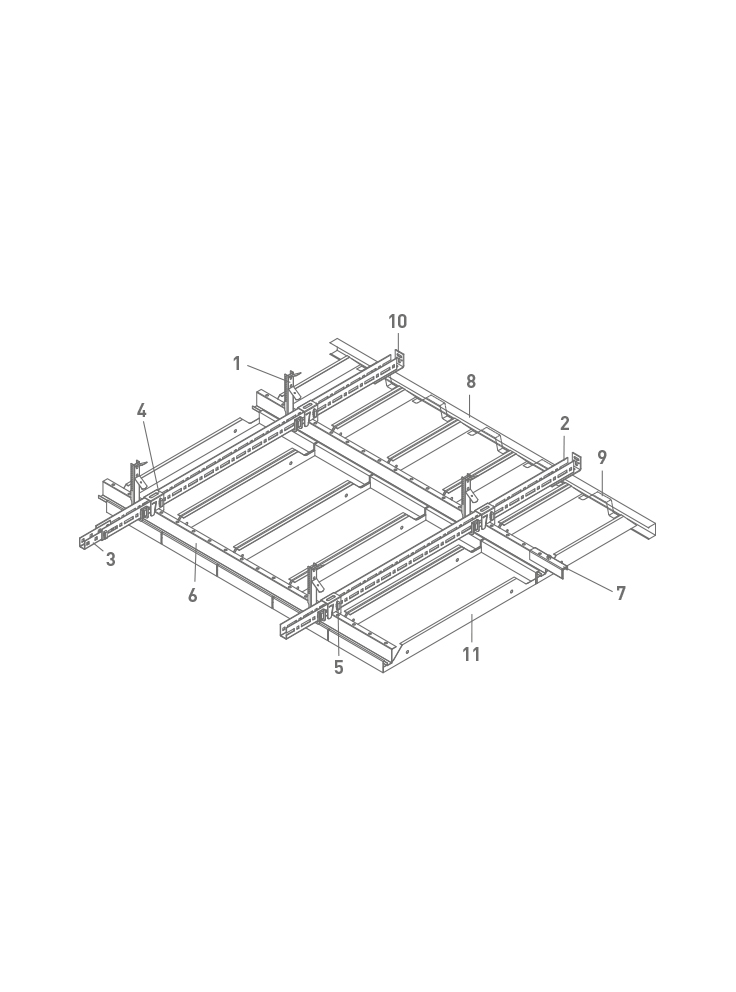

System S 39 hook-on system with Z profiles, demountable
1 Hanger no. 1782E
2 U profile no. 70E
3 Connector no. 77E
4 Hanger no. 12E02
5 Safety clip no. 66E
6 Z profile no. 90E01
7 Connector no. 25E
8 C wall angle no. 57
9 Wall spring no. 5210
10 Wall anchor no. 75E
11 Metal plank
DS 9391 e/uk
2 U profile no. 70E
3 Connector no. 77E
4 Hanger no. 12E02
5 Safety clip no. 66E
6 Z profile no. 90E01
7 Connector no. 25E
8 C wall angle no. 57
9 Wall spring no. 5210
10 Wall anchor no. 75E
11 Metal plank
DS 9391 e/uk
Technical data
Dimensions
Width 250 – 600 mm | length 600 – 3000 mm
(large format planks available on request)
Edges
Long edge: 10, short edge: 11
Thickness
Galvanized sheet steel approx. 0.5 – 0.7 mm (depending on the version)
Perforations
All perforations possible
For further details please see OWA brochure no. 9339 e
